Reference: RM 037

Model: Automatic Winding

Introduction SOPHISTICATED, REFINED, DARING Our objective for this model was to construct a synthesis, to bring together all the experience we have gained since the creation of the brand in one watch. And it had to be spectacular, both technically and aesthetically, with finishing also of an exceptional level. Extreme technicity, sophistication and hand finishing in the grand tradition of Swiss watchmaking make the RM 037 an exceptional piece which exemplifies the innovative style that is Richard Mille’s hallmark. VARIATIONS Carbon TPT® Gold Ceramic Carbon TPT® At the same time very light and robust, the Carbon TPT® lends a unique and powerful appearance while simultaneously ensuring an optimal protection for the movement. Its damascene patterns make each piece unique. CALIBRE CRMA1 Skeletonised automatic-winding in-house movement Hours, minutes, variable-geometry rotor, oversize date and function selector Power reserve: around 50 hours ( ± 10%) Dimensions: 52.

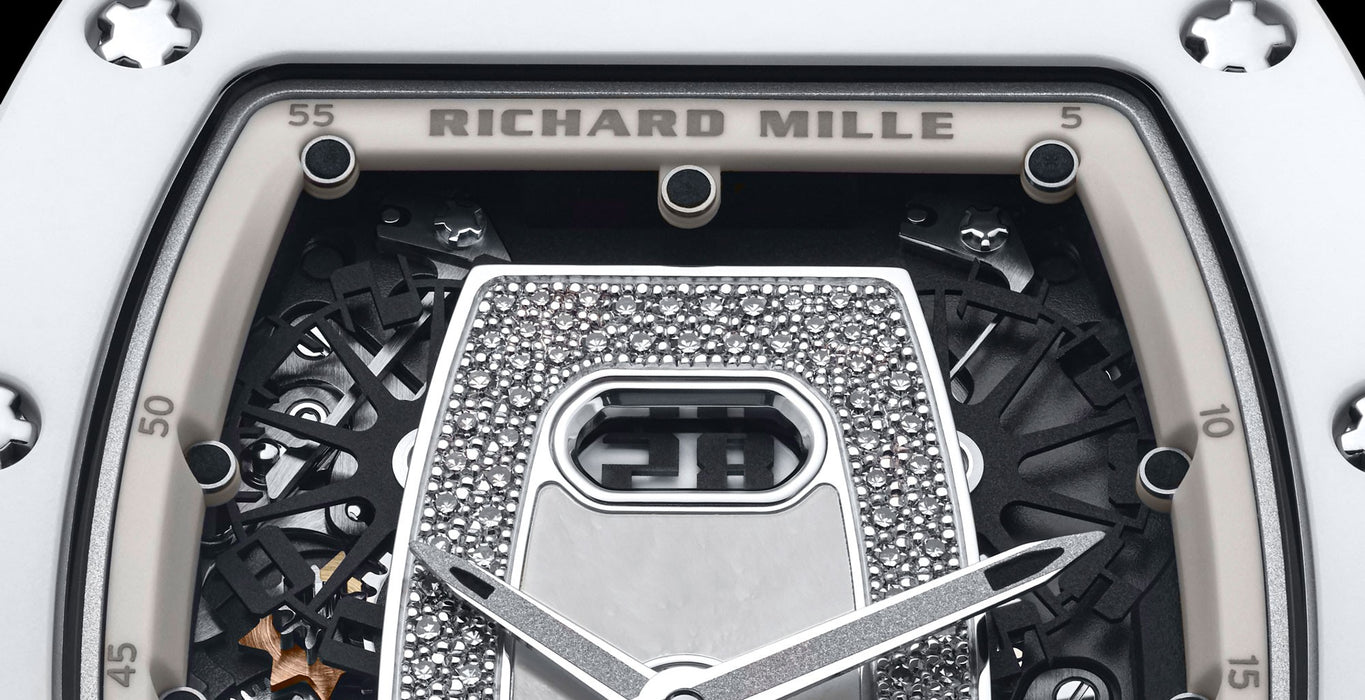

20 x 34. 40 x 12. 50 mm BASEPLATE AND BRIDGES MADE OF GRADE 5 TITANIUM Microblasted grade 5 titanium with an electroplasma treatment gives great rigidity to the baseplate, as well as precise surface flatness which is essential for the perfect functioning of the gear train. The bridges are also in grade 5 titanium, microblasted and electroplasma treated. The skeletonised baseplate and the bridges were subjected to separate and extensive validation tests to ensure optimal strength requirements. OVERSIZE DATE DISPLAY Semi-instantaneous, horizontally placed under 12 o’clock, functioning via two skeletonised calendar discs over a white field.

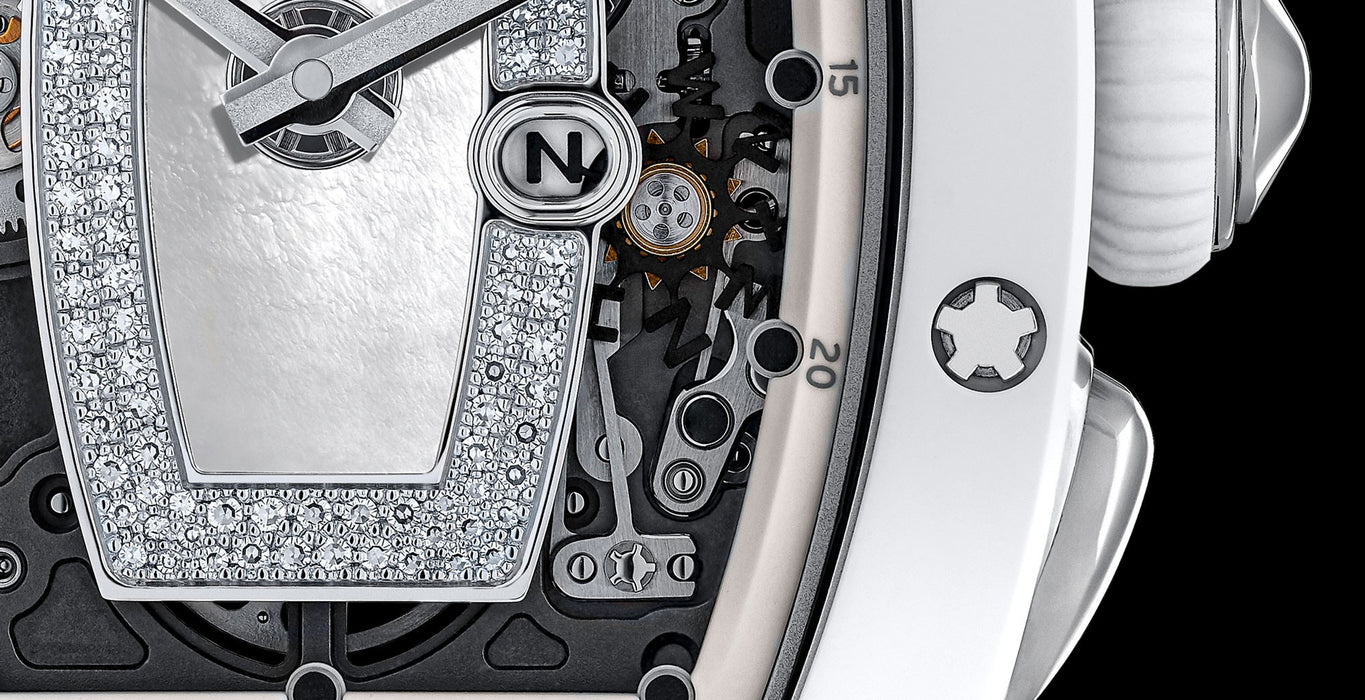

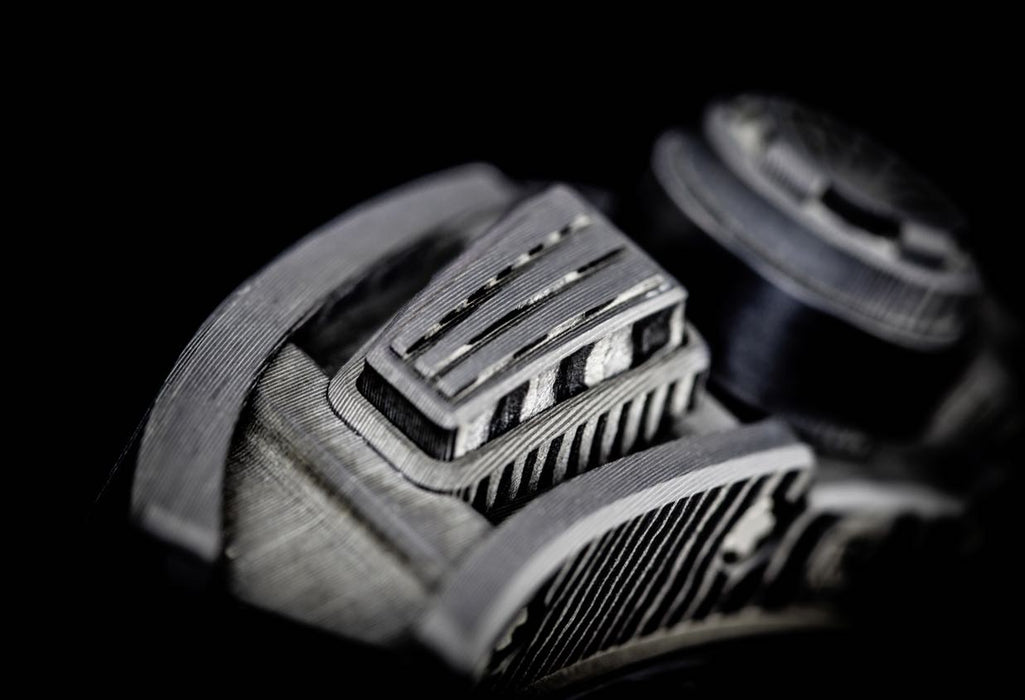

FUNCTION SELECTOR The function selector shows Richard Mille’s passion for mechanical innovation. A push-button makes it possible to select the winding, neutral and hand-setting functions with a simple push. A hand displays the selected function: W (Winding) – N (Neutral) – H (Hand Setting). With this special gear system, stressful forces placed upon the crown are minimised, and any possible interference of the crown’s functions with the movement is made impossible. MOVEMENT CHARACTERISTICS Movement dimensions: 28. 00 x 22.

90 mm Thickness: 5. 79 mm Number of jewels: 25 Balance: CuBe, 4 arms and 4 setting screws, moment of inertia 7. 5 mg•cm 2 , angle of lift 50° Frequency: 28,800 vph (4 Hz) Balance spring: AK3 Shock protection: INCABLOC 908. 22. 211. 100 (transparent) Escapement wheel jewels: Rubifix (transparent) PATENTED STEM-CROWN CONSTRUCTION Created from grade 5 titanium, red gold or white gold, with O-ring seal and collar in Alcryn®, this crown fully guarantees the integrity of the movement protecting the mechanism from external influences, since it does not use a classical crown attachment that penetrates to the movement’s heart.

The result is a crown that is virtually impossible to dislodge, yet is easily inserted and removed in the skillful hands of the watchmaker when needed; a longsighted view that is typical of the brand’s philosophy. Top view Right view Back view Left view Finishing Movement • Microblasted anglage • Microblasted-milled section • Microblasted sinks • Electroplasma treatment for the baseplate and bridges Steel parts • Satin-finished surfaces • Hand-polished anglage • Hand-polished sinks • Burnished sections • Lapped and polished ends • Burnished pivots • Post faces polished Wheels • Concave chamfering with a diamond tool • Diamond-polished angles • Circular-finished faces • Rhodium plating (before cutting the teeth) Other features FAST-ROTATING BARREL (5 hours per revolution instead of 7. 5 hours) This type of barrel provides the following advantages: The phenomenon of periodic internal mainspring adhesion is significantly diminished, thereby increasing performance. Provision of an excellent mainspring delta curve with an ideal power reserve/performance and regularity ratio. FREE-SPRUNG BALANCE WITH VARIABLE INERTIA This type of balance wheel represents the ultimate in innovation. It guarantees greater reliability when subjected to shocks or during movement assembly or disassembly, hence better chronometric results over time. The regulator index is eliminated and a more accurate and repeatable calibration is possible thanks to 4 small, adjustable weights located directly on the balance. SPLINE SCREWS IN GRADE 5 TITANIUM FOR THE BRIDGES AND CASE This permits better control of the torque applied to screws during assembly. These screws are therefore unaffected by physical manipulation during assembly or disassembly and age well. .
